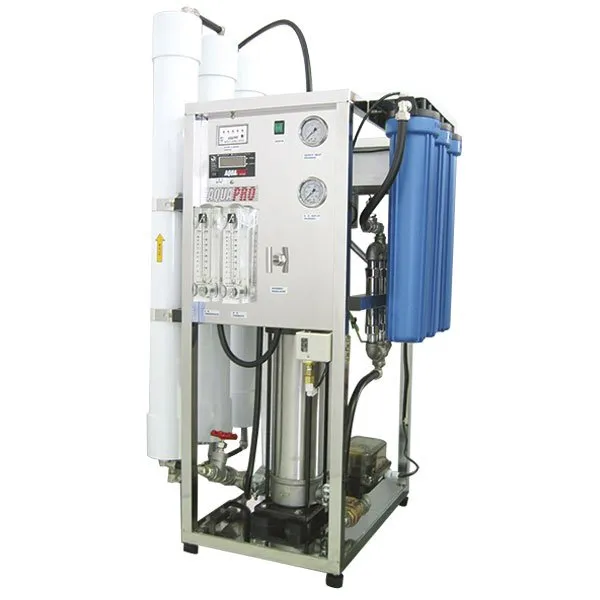

Aquapro 6000GPD 3 x 4040 Industrial Reverse Osmosis Filtration System with Grundfos Digital Controller & Recycle

The unit is fitted with a double 20” x 4.5” housing system comprising of a 5mic sediment filter and a 10mic carbon block. These filters are designed to protect the pump and membrane only and are not installed as a system pre-treatment. Changing the cartridges regularly will help prevent excessive blockage that could be detrimental to the system.

Features:

Concentrate Flow Meter – 1-10GPM (35 lpm)
Permeate Flow Meter – 1-10GPM (35 lpm)
Recycle Flow Meter – 1-5GPM (18 lpm)
Source Water Pressure Gauge – 0-200PSI
RO Outlet Water Pressure Gauge – 0-500PSI
2 x 20” x 4.5” Pre-Filters (1 x Sediment, 1 x Carbon)
Low Pressure Switch
1” Inlet Actuator
1/2” Flush Solenoid Valve
Recycle 1/2" Stainless Steel Gate Valve
Concentrate 1/2" Stainless Steel Gate Valve
Check Valve in Recycle Valve
Power On/Off Switch
Provisions for a Float Switch (Not supplied)
Temperature monitoring
Conductivity monitoring with over limit alarm
Adjustable Flush Time sequence
TDS monitoring
Indicator lights for

Low Feed Pressure
Low Pressure
High Pressure
Tank Full
Auto Flush

3 ½” LED digital display

Performance	@ 25°C, 2000ppm TDS*
Feed flow	2.1 m³/hr
Permeate flow	0.3 m³/hr
Recovery	Up to 50%
Rejection	95 - 98%
Operating pressure	200 psi max
Inlet pressure	40 - 90 psi max
Temperature	45°C max
Membrane housing	3 x 4040 Fibreglass
Membrane	3 x RE-4040-BE CSM
Pre-filtration	20” x 4.5”
1 x 5 µm Sediment
1 x 10 µm Carbon
Pump & Motor	Grundfos
CR1-23 X-P-A-E HQQE
1.1 kw 240V 50 hz
Piping	High pressure reinforced
Electrical	1.65 m power cord with 15A plug
Controller	ROC 2315 Microprocessor
Frame	Stainless Steel
Connections	1” Inlet, 1” M Concentrate,
1” M Permeate & 1/2” M Comp
Brine
Dimensions	1420 H x 770 W x 790 D
