Hyderpro R6500 1 x 4040 Packaged Commercial Reverse Osmosis RO Filtration System (Max 250LPH)

The system is a modern functionally complete compact unit that meets all the requirements of efficiency, compactness and ergonomics. The operating principle of a traditional system for reverse osmosis installations and is to divide the source water by a semipermeable membrane into two streams: purified water - and the permeate water with a high content of impurities - concentrate that is discharged into the sewers.

Typically used with steam boilers, heating and cooling circuits, breweries and beverage production, livestock and poultry farms, glazing factories, laundry and car wash etc. Model M6VCOTFWE0UN is equipped with OC6000 controller with Econnect functionality providing online access to the RO machine

EQUIPMENT:

• Grundfos® CM 1-10 pump
• 300 psi membrane vessel
• BB20 sediment prefilter
• Electrical panel with Ecosoft controller
• Danfoss solenoid valves

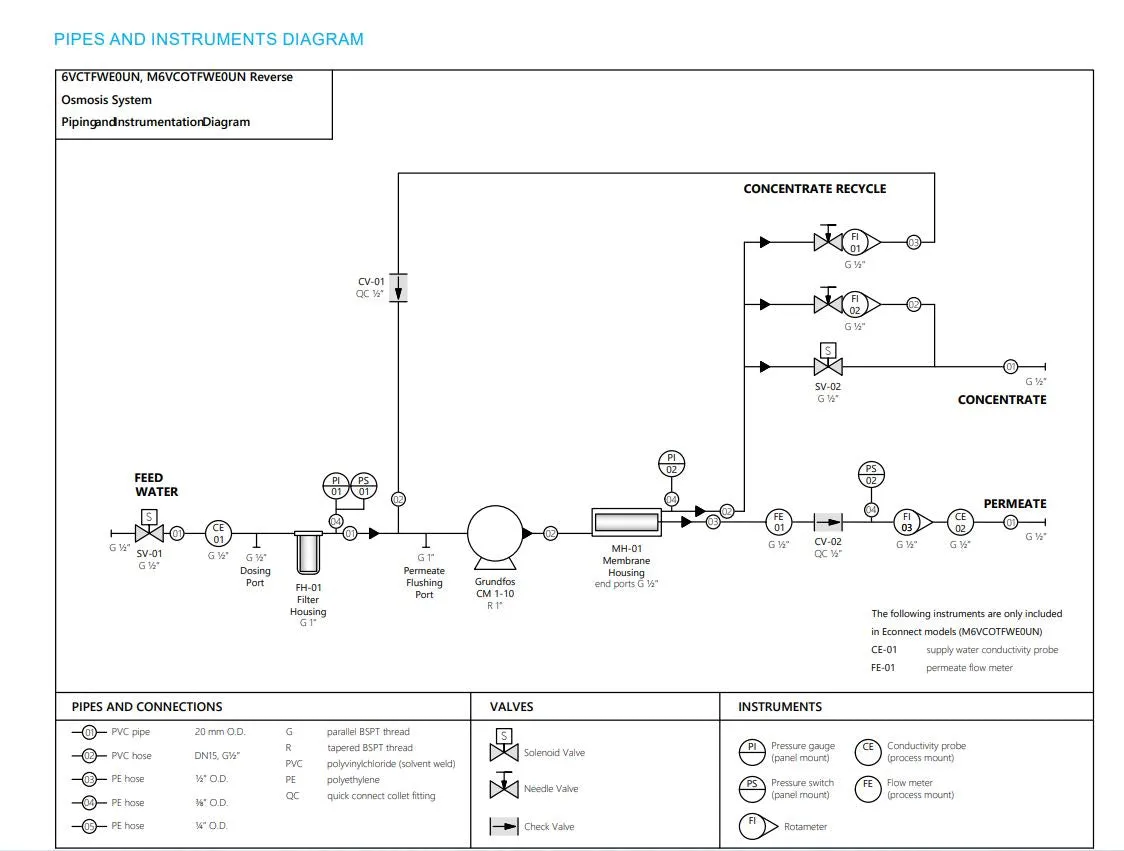

• Piping, instrumentation
• Steel frame
• Carton crate
• PP melt blown sediment filter, 5 micron

OPTIONS:

• Filmtec™ ХLE-4040 / LCLE-4040 or Ecosoft ELP-4040 membrane
• Dosing pump for antiscalant
• Versatile set for raw water blending (30...240 L/h) or permeate flushing

CONNECTIONS:

• influent water: ½"
• permeate: ½"
• concentrate: ½"
• antiscalant dosing port: ½″
• permeate flushing input port: ½"

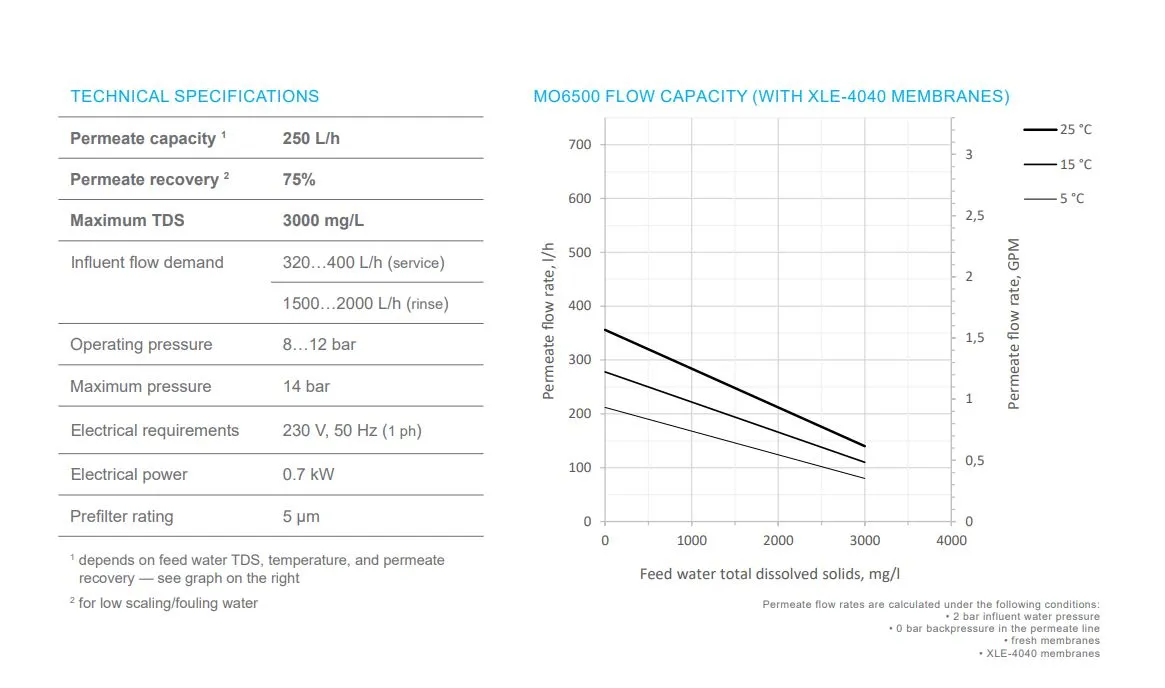

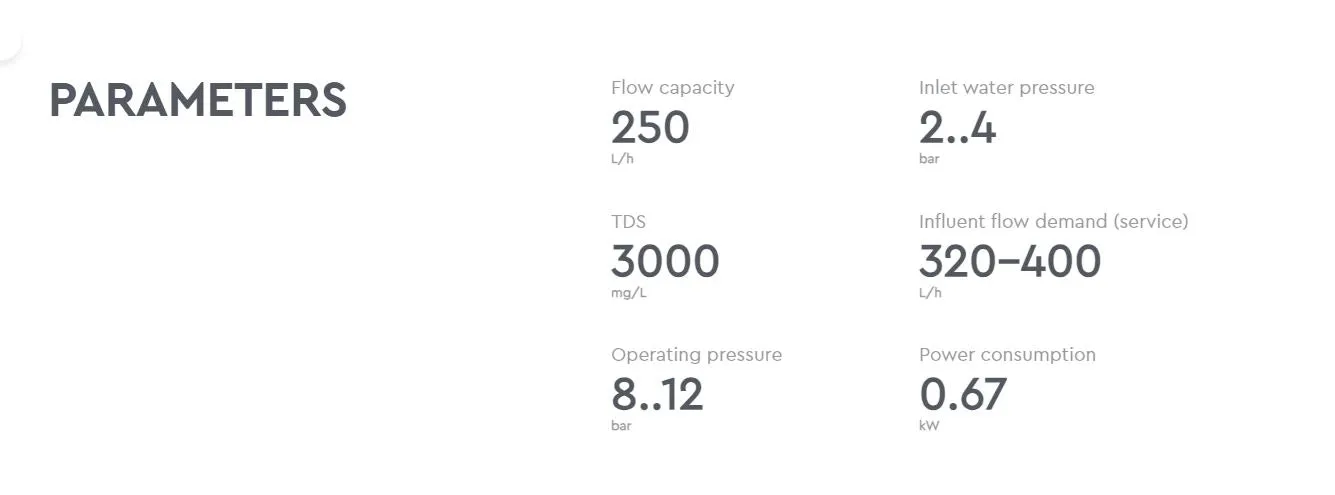

SPECIFICATIONS:

• Permeate capacity*: 250 L/h
• Permeate recovery**: 75%
• Maximum TDS: 3000 mg/L
• Influent flow demand
  - 320…400 L/h (service)
  - 1500…2000 L/h (rinse)
• Operation pressure: 8…12 bar
• Maximum pressure: 14 bar
• Electrical requirements: 230 V, 50 Hz (1 ph)
• Electrical power: 0.7 kW
• Prefilter rating: 5 μm

FEED WATER REQUIREMENTS:

• Influent water temperature: 5... 40 °С
• Residual chlorine, max: 0.1 mg/L
• Hardness: up to 3 meq/L (150 mg/L CaCO₃)
• Iron: up to 0.1 mg/L
• Manganese: up to 0.05 mg/L
• Silicate: up to 20 mg/L
• Chemical oxygen demand, max : 4.0 mg О₂/L
• Hydrogen sulfide - none

APPLICATIONS

• Steam boilers
• Heating and cooling circuits
• Breweries and beverage production
• Livestock and poultry farms
• Glazing factories
• Laundry and car wash

PHYSICAL PARAMETERS

• Influent water, concentrate, permeate G ½″
• Antiscalant dosing port G ½″
• Permeate flushing input port G ½″
• Approx. weight (bare system / crate) 55 kg 80 kg
• Dimensions (bare system, W × D × H) 0.55 × 0.42 × 1.50 m
• Dimensions (crate, W × D × H) 0.60 × 0.50 × 1.65 m

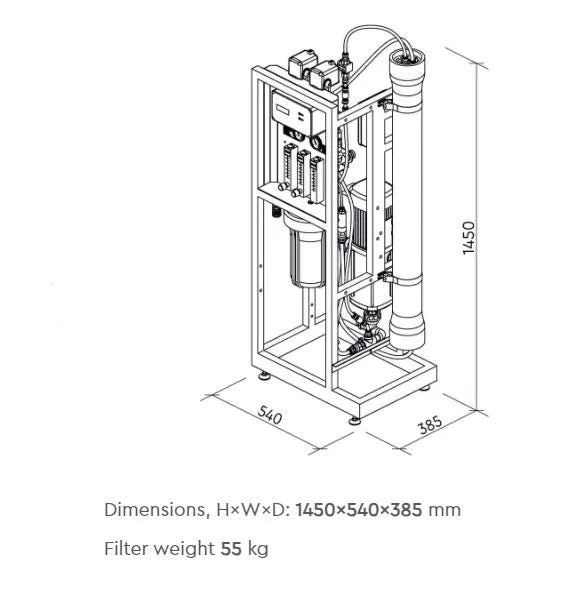

DIMENSIONS

• Height: 1450mm
• Width: 540mm
• Depth: 385mm
• Weight: 55Kg
